Live-Link Remote 4K Camera Interface System(JM-EFP-G2) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit 1CH 4K Forwarding SDI,1xReverse3GSDI video, 1CH reverse analog composite CVBS signal, 1CH TALLY , 2x Bidi unbalanced audio (Intercom), Remote control(1CH full-duplex RS422,1xBidi RS232,1CH half-duplex RS485), 1CH 10/100M Ethernet signals to 10KM over 2 xST single mode fiber or 300 meters over Multi mode fiber.
Live-Link Remote 4K Camera Interface System(JM-EFP-G2)Features:
1)easily pass the Pathological test(extremely harsh environments)
2)SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s – 3)3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
4)Uncompressed lossless transmission without delay;
5)More than 10KM transmission distance up to a maximum 80KM;
6)Supports Sony / Panasonic / JVC, etc. Remote control
7)Tally / GPI output or charged dry output
8)Wide temperature range, low power consumption
Live-Link Remote 4K Camera Interface System(JM-EFP-S2)Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
| Product Name | Live-Link Remote 4K Camera Interface System(JM-EFP-G2) |
| Model | JM-EFP-G2 |
| SDI Connector | BNC |
| Fiber | Dual fibers, LC / ST connector, Compatible with multimode or single mode fiber |
| Power Supply | AC85-260V/50Hz |
| SDI Format | 1)All inputs and outputs are equalized and re-clocked |
| | 2)Immune to pathological patterns over the entire link budget and operating temperature range |
| | 3)SMPTE 424M-2006, 292, 259 and DVB-ASI compliant |
| | 4)Supports embedded audio and data signals |
| | 5)Support SDSDI & HDSDI & 3GSDI, Support 270M & 1.485G & 2.97G SDI Video |
| Dimension | TX:19" 1U rack mount RX: 19" 1U rack mount on base end |
| Working Environment | Working Temperature: 0 ℃~+85 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years warranty |
| Description | Compliance: 3G, HD, SD compliance, SMPTE 424M, SMPTE 292M, SMPTE 259M |
| | 1x4K SDI(4x3GSDI),forward direction |
| | 1 x 3G-HDSDI, Reverse direction |
| | 2 x Audio, bi-direction, unbalanced audio, |
| | 1 x RS422 data, full-duplex mode |
| | 1 x RS232 bi-directional |
| | 1 x RS485 bi-directional |
| | 1 x Analogue video |
| | 1 x Tally |
| | 1 x 100M Ethernet |
| | Dimension: 480 x 250 x 50 (mm) = 19' standard case |
| | Grosse weight is about 10 kg, |
| | Extends distance: Single mode 10km / Multi mode 300 meters |
| | Packing in box: Transmitter x1, Receiver x 1, Power wire x 2, Use mannual x 1 |

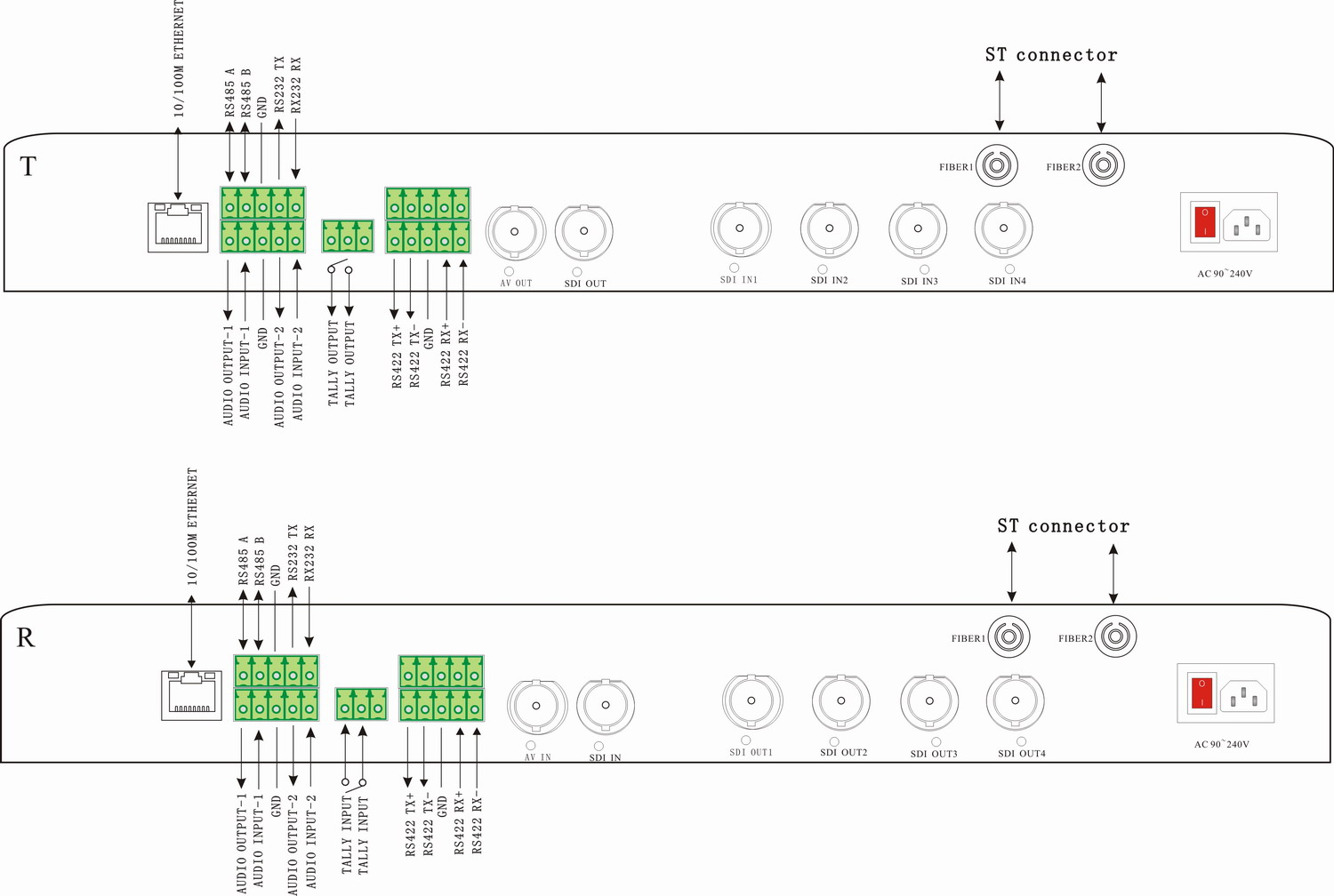

Connection diagram:
|
|
Live-Link Remote 4K studio camera Interface System(JM-EFP-G2) Images
|
